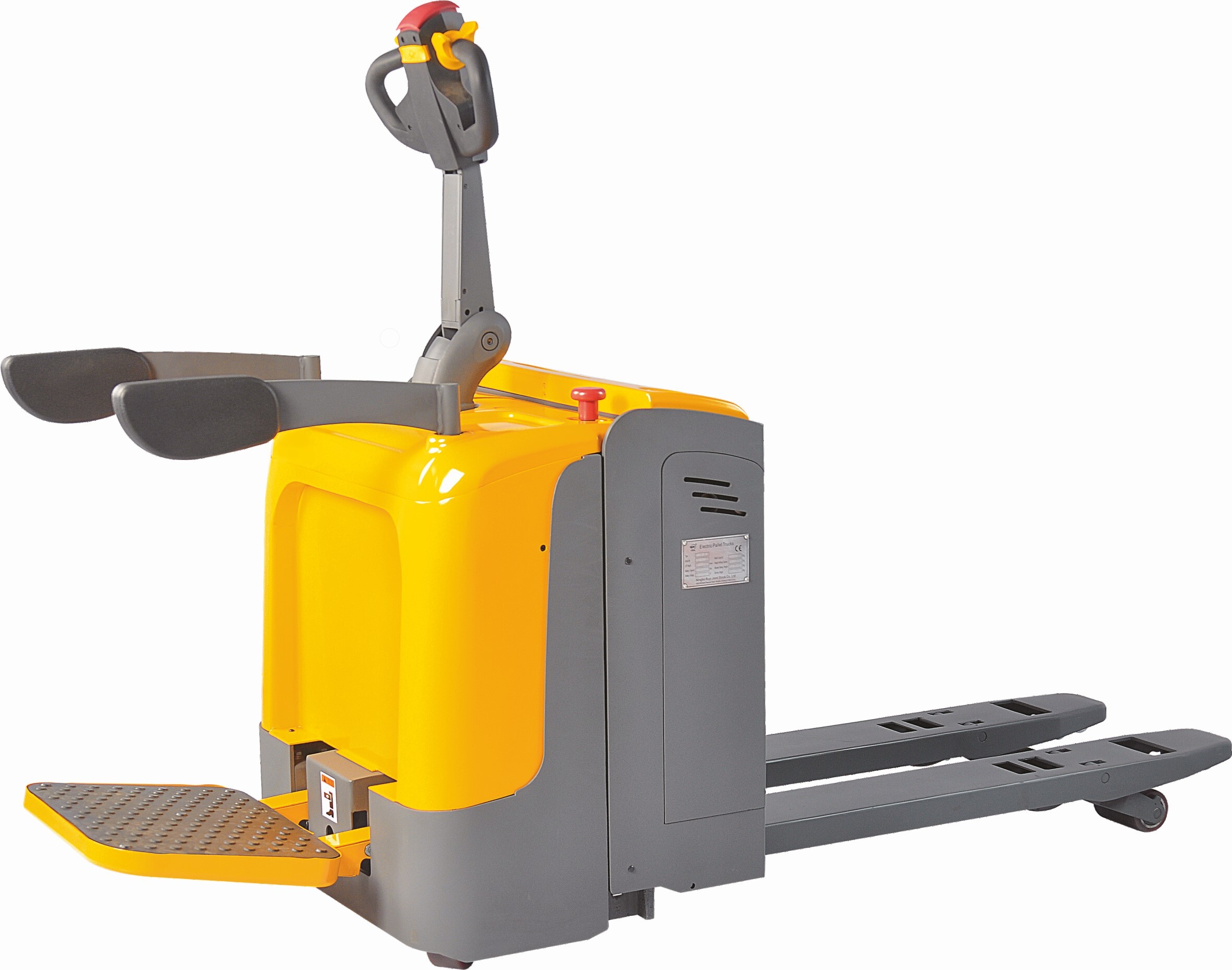

Rider Pallet Truck: JHA20RL

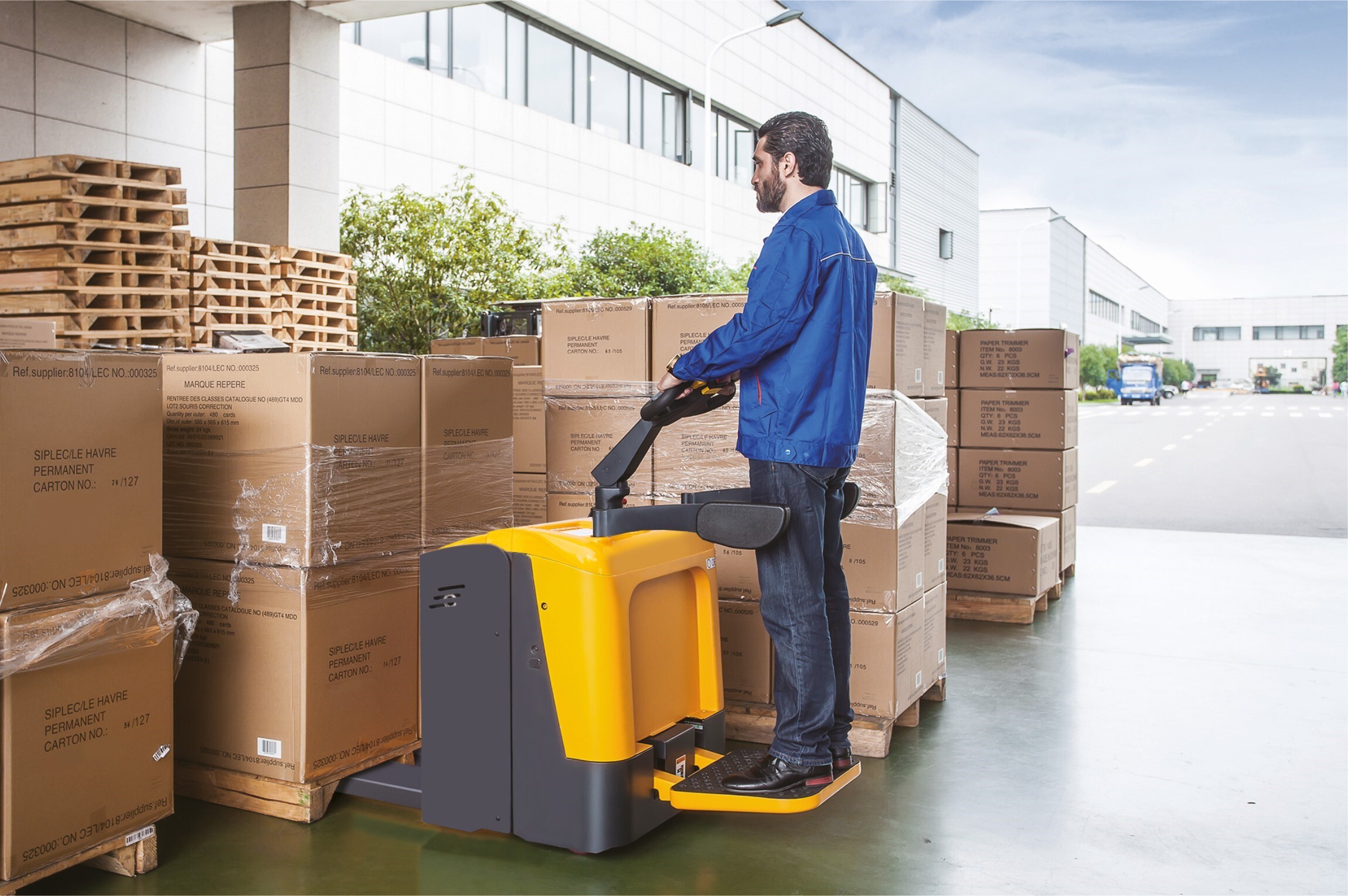

JHA20RL is the stand-on type platform Pallet Truck (Pallet Jack Conveyor), with small turning radius and super light steering system. widely used large warehouse and big supermarket for medium distance transport.
- Emergency stop and belly button
- Platform with speed sensor
- Sideway battery change
- Outside charger
- Brushless AC motor
- Multi-function control handle
- BDI and hour meter
- Caster to balance stability

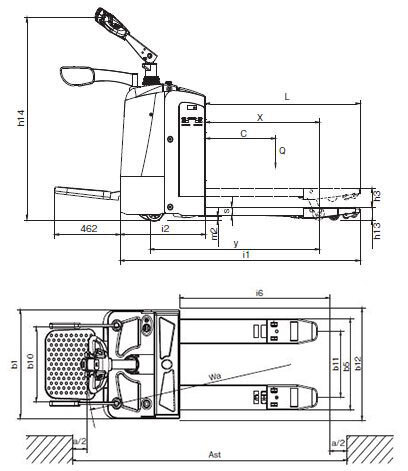

Specification Details
| Characteristics | Driving Mode | Motor Driving | |
|---|---|---|---|
| Drive Mode | Stand | ||
| Rated Load | Q (kg) | 3000 | |
| Load Centrer Distance | c (mm) | 600 | |
| Front Overhang | x (mm) | 914/964/1034 | |
| Tread | Y (mm) | 1286/1336/1406 | |
| Weight | Service Weight (with battery) | kg | 820 |
| Axle Load, front/rear, laden | kg | 1720/2100 | |
| Axle Load, front/rear, unladen | kg | 660/160 | |
| Wheel Chasis | Wheels | PU | |
| Wheels Dimension, front | Φ 250 x 80 | ||
| Wheel Dimension, rear | Φ 82 x 126 (98) | ||
| Additional Wheel (Dimension) | Φ 127 x 57 | ||
| Wheel Number, front/rear (X ~ Driving Wheel) | 1 X + 2/2(4) | ||
| Tread, front | b10 (mm) | 537 | |
| Tread, rear | b11 (mm) | 340/370/470/505 | |
| Dimension | Light Height | h3 (mm) | 120 |
| Min./ Max. Height of Operation Handle, in Driving Position | h14 (mm) | 1050/1450 | |
| Height, Lowered | h13 (mm) | 82 | |
| Overall Length | 1785/1835/1905 | ||
| Length to fork face | i2 (mm) | 685 | |
| Overall width of turck body | b1 （mm) | 775 | |
| Fork Dimension | S/e/i (mm) | 54X180X1100 (1150/1220) | |
| Overall width of fork | b5 (mm) | 520/550/650/685 | |
| Wheelbase Ground Distance | m2 (mm) | 28 | |
| Aisle Width, with pallet 1000x1200 crosswwse | Ast (mm) | 2435/2480/2550 | |
| Aisle Width, with pallet 899x1200 crosswise | Ast (mm) | 2320/2345/2380 | |
| Turning Radius | Wa (mm) | 1625/1675/1745 | |
| Performance Data | Travelling Speed, laden/unladen | km/h | 07-Jul |
| Lifting Speed, laden/unladen | m/s | 0.039/0.056 | |
| Descending Speed, laden/unladen | 0.039/0.056 | 0.064/0.05 | |
| Gradeability Speed, laden/unladen | % | 20-Aug | |
| Travelling Brake | Electromagnetic | ||
| Driving motor power | kW | 2.2 | |
| Motor | Lifting motor power | kW | 2.2 |
| Battery voltage / Rated capacity | V/Ah | 24/280 | |
| Battery Weight | kg | 275 | |
| Battery Dimension (L x W x H) | mm | 650 x 247 x 535 | |
| Noise Level at Operator's Ear, according to DIN12053 | dB (A) | 70 |
